# Robustifying `concurrent.futures`

.affiliations[
  ![CMLA](images/logo_cmla.png)
  ![ENS Paris-Saclay](images/logo_ens.png)
  ![Heuritech](images/logo heuritech v2.png)
]

---
## Embarassingly parallel computation in `python` using a pool of workers

- `concurrent.futures`: reimplementation using `multiprocessing` under the hood.</br></br>

- `loky`: robustification of `concurrent.futures`.</br></br>
]

---
exclude: true
# What this talk is about?

- CPU bound computation, such as
</br>.filler[] _Computing a large linear operation_
</br>.filler[] _Fitting a model with a set of parameters_
]

count:false
</br>
.normal2[
- Need to run it several independent times.
</br>.filler[] _Fitting a model with $K$ sets of parameters._
]

</br>
.normal2[
- Computer with multiple cores.
]

---
exclude: true
# Embarassingly parallel computations
.normal2[
- Independent computations.</br></br>

- Each running on one core.</br></br>

- Use of the multicore architecture of your computer!</br></br>

- Use a Pool of workers and a queue of jobs.
]

---
exclude: true
# Agenda

### The `concurrent.futures` API

--
exclude: true
count: false

### `Thread` or `Process` ?

--
exclude: true
count: false

### The headaches of managing a pool of process: `ProcessPoolExecutor`.

--
exclude: true
count: false

### Reusable pool of workers in `loky`.

--
exclude: true
count: false

### Embarassingly simple multiprocessing: `joblib`.

---
class: middle, center

# The `concurrent.futures` API

---

### The `Executor`: a worker pool
.left-column[
```python
from concurrent.futures import ThreadPoolExecutor

*def fit_model(params):
*   # Heavy computation
*   return model

```
]

`fit_model` is the function that we want to run asynchronously.

---
count: false

### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
*with ThreadPoolExecutor(max_workers=4) as executor:
```
]

We instanciate a `ThreadPoolExecutor` with 4 threads.
]

---
count: false

### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
*   future1 = executor.submit(fit_model, param1)
```
]

We instanciate a `ThreadPoolExecutor` with 4 threads.

A new job is submitted to the `Executor`.
The `Future` object `future1` holds the state of the computation.
]

---
count: false

### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

*   # Submit other job
*   future2 = executor.submit(fit_model, param2)
```
]

We instanciate a `ThreadPoolExecutor` with 4 threads.

A new job is submitted to the `Executor`.
The `Future` object `future1` holds the state of the computation.
]

---
count: false

### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

*   # Run other computation
*   ...
```
]

We instanciate a `ThreadPoolExecutor` with 4 threads.

A new job is submitted to the `Executor`.
The `Future` object `future1` holds the state of the computation.
]

---
count: false
### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

# Run other computation
    ...

# Blocking call, wait and return the result
*   model1 = future1.result(timeout=None)
*   model2 = future2.result(timeout=None)
```
]

We instanciate a `ThreadPoolExecutor` with 4 threads.

A new job is submitted to the `Executor`.
The `Future` object `future1` holds the state of the computation.

Wait for the computation to end and return the result with `f.result`.
]

---
count: false
### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

# Run other computation
    ...

# Blocking call, wait and return the result
    model1 = future1.result(timeout=None)
    model2 = future2.result(timeout=None)

# The ressources have been cleaned up
*print(model1, model2)
```
]

We instanciate a `ThreadPoolExecutor` with 4 threads.

A new job is submitted to the `Executor`.
The `Future` object `future1` holds the state of the computation.

Wait for the computation to end and return the result with `f.result`.

The ressources are cleaned up.

]

---
count: false
### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

# Run other computation
    ...

# Blocking call, wait and return the result
    model1 = future1.result(timeout=None)
    model2 = future2.result(timeout=None)

# The ressources have been cleaned up
print(model1, model2)
```
]

We instanciate a `ThreadPoolExecutor` with 4 threads.

A new job is submitted to the `Executor`.
The `Future` object `future1` holds the state of the computation.

Wait for the computation to end and return the result with `f.result`.

The ressources are cleaned up.
]

---
## The `Future` object: an asynchronous result state.

### States

`Future` objects hold the state of the asynchronous computations,
wich can be in one of 4 states:
.state[Not started], .state[Running], .state[Cancelled] and .state[Done]

The state of a `Future` can be checked using `f.running, f.cancelled, f.done`.

]

* `f.result(timeout=None)`
* `f.exception(timeout=None)`
]]
.right-column[.normal[
</br>
</br>
</br>
wait for computations to be done.
]]

<!--.left-column[
```python
    f = executor.submit(fit_model, 21, 21, delay=1)
    print("is running:", f.running())  # True
    print("is done:", f.done())        # False

time.sleep(1)
    print("is running:", f.running())  # False
    print("is done:", f.done())        # True

# The executor only has 4 workers
    fs = [executor.submit(fit_model, 21, 21, delay=1)
          for _ in range(5)]
    f_last = fs[-1]
    print("is running:", f_last.running())  # False
    print("is done:", f_last.done())        # False
```
]
.right-column[]-->

???
bla bla

---
### The `Executor`: a worker pool

*def fit_model(params):
*   # Heavy computation
*   return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

# Run other computation
    ...

# Blocking call, wait and return the result
    model1 = future1.result(timeout=None)
    model2 = future2.result(timeout=None)

# The ressources have been cleaned up
print(model1, model2)
```
]

---
count: false
### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

*# Create an executor with 4 threads
*with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

# Run other computation
    ...

# Blocking call, wait and return the result
    model1 = future1.result(timeout=None)
    model2 = future2.result(timeout=None)

# The ressources have been cleaned up
print(model1, model2)
```
]

]

---
count: false
### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

*   # Submit an asynchronous job and return a Future

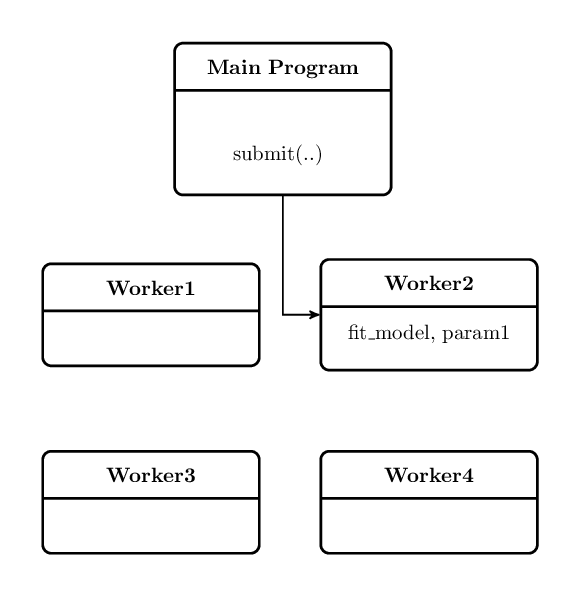

*   future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

# Run other computation
    ...

# Blocking call, wait and return the result
    model1 = future1.result(timeout=None)
    model2 = future2.result(timeout=None)

# The ressources have been cleaned up
print(model1, model2)
```
]

---
count: false
### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

*   # Submit other job
*   future2 = executor.submit(fit_model, param2)

# Run other computation
    ...

# Blocking call, wait and return the result
    model1 = future1.result(timeout=None)
    model2 = future2.result(timeout=None)

# The ressources have been cleaned up
print(model1, model2)
```
]

---
count: false
### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

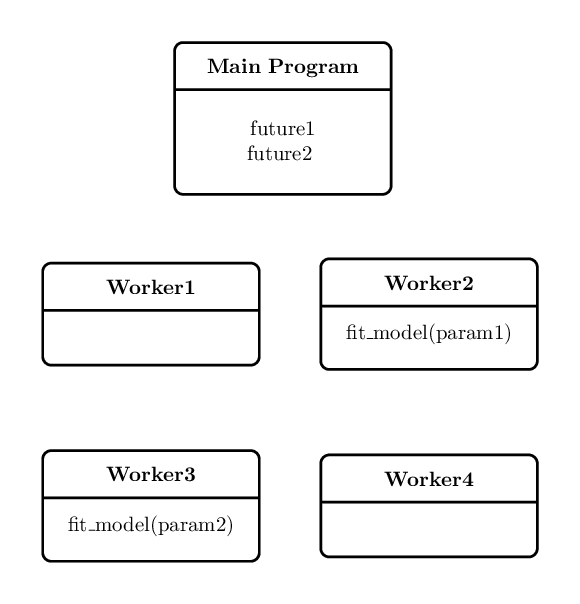

*   # Run other computation
*   ...

# Blocking call, wait and return the result
    model1 = future1.result(timeout=None)
    model2 = future2.result(timeout=None)

# The ressources have been cleaned up
print(model1, model2)
```
]

---
count: false
### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

# Run other computation
    ...

*   # Blocking call, wait and return the result

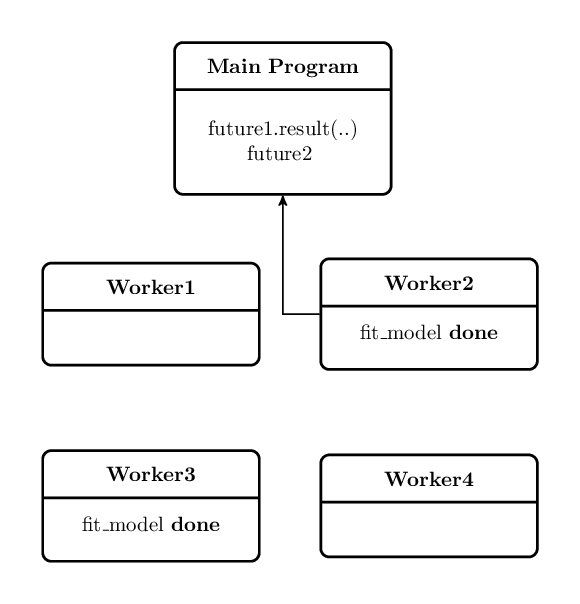

*   model1 = future1.result(timeout=None)
    model2 = future2.result(timeout=None)

# The ressources have been cleaned up
print(model1, model2)
```
]

---
count: false
### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

# Run other computation
    ...

*   # Blocking call, wait and return the result
    model1 = future1.result(timeout=None)

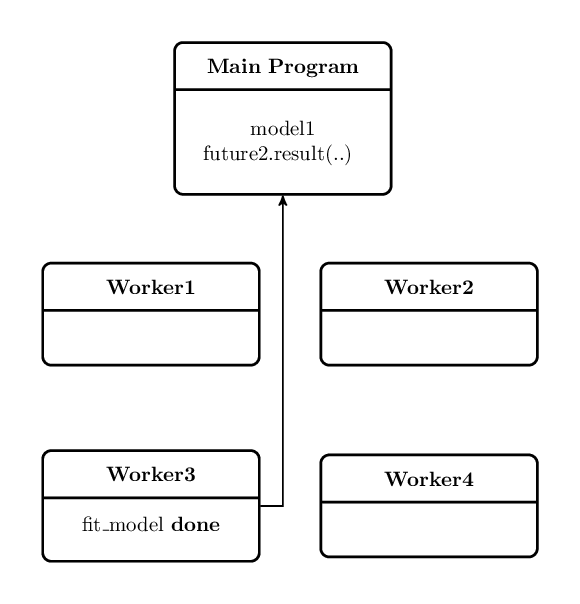

*   model2 = future2.result(timeout=None)

# The ressources have been cleaned up
print(model1, model2)
```
]

---
count: false
### The `Executor`: a worker pool

def fit_model(params):
    # Heavy computation
    return model

# Create an executor with 4 threads
with ThreadPoolExecutor(max_workers=4) as executor:

# Submit an asynchronous job and return a Future
    future1 = executor.submit(fit_model, param1)

# Submit other job
    future2 = executor.submit(fit_model, param2)

# Run other computation
    ...

# Blocking call, wait and return the result
    model1 = future1.result(timeout=None)
    model2 = future2.result(timeout=None)

*# The ressources have been cleaned up
*print(model1, model2)
```
]

<!---

<div class="mermaid">
classDiagram
    MainProcess .. CommunicationQueue
    CommunicationQueue .. Worker1
    CommunicationQueue .. Worker2
    CommunicationQueue .. Worker3
    CommunicationQueue .. Worker4
    MainProcess : fit_model()
</div>
-->

---
class: middle, center

# Choosing the type of worker: `Thread` or `Process` ?

---
# Running on multiple cores

## Python GIL

.normal[
The internal implementation of python interpreter relies on a
"Global Interpreter Lock" **(GIL)**, protecting the concurrent access to
python objects:

- Only one thread can acquire it.

- Not designed for efficient multicore computing.

**Global lock everytime we access a python object.**

Released when performing long I/O operations or by some libraries.
</br>(_e.g._ numpy, openMP,..)
]
---
# Thread
.left-column[.normal[

- Real system thread:
    - pthread
    - windows thread

- All the computation are done with a **single** interpreter.

]]
<div class="right-column" style="margin: -50px;">
.normal[
**Advantages:**

- Fast spawning

- Reduced memory overhead

- No communication overhead (shared python objects)
]</div>
.reset-column[
]

--
count: false

]]

--
count: false

---
# Thread

This is not quicker than sequential even on a multicore machine.
]

---
# Thread

.normal[
Threads hold the GIL when running python code.
They release it when blocking for I/O:
![](images/thread-0.png)
Or when using some c library:
![](images/thread-1.png)

]

---
exclude: true
# Thread

```python
>>> from threading import Thread
>>> def count(n):
...     while n > 0:
...         n -= 1

>>> %timeit count(10000000)
1 loop, best of 3: 409 ms per loop

>>> %%timeit
... t1 = Thread(target=count,args=(10000000,))
... t2 = Thread(target=count,args=(10000000,))
... t1.start(); t2.start()
... t1.join(); t2.join()

1 loop, best of 3: 836 ms per loop
```
]

.right-column[.normal[
    </br>
    </br>
    </br>
    </br>
    </br>
    The threads spend more time trying to acquire the <b>GIL</b> than computing.
]]

---
exclude: true
.normal[
<div class="mermaid">
gantt
    title Thread task schedule
    dateFormat D

section Thread1
    T1   :a1, 1, 6h
    T1   :a3, after a2  , 2d
    section Thread2
    T2   :a2, after a1 , 1d12h
    T2   :a6, after a5, 1d
    section Thread3
    T3   :a4, after a3 , 1d12h
    T3   :a5, after a4, 1d
</div>

]

---
# Process
.left-column[.normal[

- Create a new python interpreter per worker.

- Each worker run in **its own ** interpreter.

]]

<div class="right-column" style="margin-top: -50px;">
.normal[
**Inconvenients:**
- *Slow* spawning

- Higher memory overhead

- Higher communication overhead.
]</div>
.reset-column[
]

--
count: false

.normal[
**But there is no GIL!**
</br>
The computation can be done in parallel even for python code.

]

--
count: false

]

---
# Launching a new interpreter: *fork*

Duplicate the current interpreter. (Only available on UNIX)

- Low spawning overhead.

- The interpreter is warm *imported*.

]
.right-column[
**Inconvenient:**

- Bad interaction with multithreaded programs

- Does not respect the POSIX specifications

]
.reset-column[

]
$\Rightarrow$ Some libraries crash: numpy on OSX, openMP, ...
]

---
# Launching a new interpreter: *spawn*

Create a new interpreter from scratch.

- Safe (respect POSIX)

- Fresh interpreter without extra libraries.

]
.right-column[
**Inconvenient:**

- Slower to start.

- Need to reload the libraries, redefine the functions...

]
]

---
exclude: true
# Process

- Each process uses its own `python` interpreter.
- The task can be run in parallel.

]
.right-column[
<div class="mermaid">
gantt
    title Process task schedule
    dateFormat D

section Process1
    T1   :a1, 1, 1d
    T3   :a3, after a1  , 2d
    section Process2
    T2   :a2, 1, 2d12h
    T6   :fill,  after a2, 8
    section Process3
    T4   :a4, 1, 1d12h
    T5   :a5, after a4, 1d
</div>
]

]

---
exclude: true
# Sharing objects between workers

.normal2[
As processes use separate interpreters, `ProcessPoolExecutor` needs communication
chanels to exchange python objects between processes.

In `Thread` this is not an issue as the interpreter is shared.

Use `pickle` to serialize the different objects in pipes or sockets.

This is abstracted in the `multiprocessing.Queue`.

]

---
exclude: true
# Starting a new interpreter

In `multiprocessing`, you can use `set_start_method` to use different implementations
of `Process`:

* `fork`: Fast start, clone the interpreter state.
* `spawn`: Slow start, need to reload libraries
* `forkserver`: Faster start but harder to use properly.

Issue with `fork`: cloning the interpreter also clone the objects that point to the other Thread.

???

`forkserver` is faster as you can preload libraries in the server process and those libraries
will be available in the child processes.

---
# Comparison between `Thread` and `Process`

.table[
|           |  Thread   | Process .subitem[(fork)] | Process .subitem[(spawn)] |
|---------------|:------------------:|:------------------:|:------------------:|
| Efficient multicore run       | ![](images/no.jpg) | ![](images/ok.jpg) | ![](images/ok.jpg) |
| No communication overhead | ![](images/ok.jpg) | ![](images/no.jpg) | ![](images/no.jpg) |
| POSIX safe    | ![](images/ok.jpg) | ![](images/no.jpg) | ![](images/ok.jpg) |
| No spawning overhead | ![](images/ok.jpg) | ![](images/ok.jpg) | ![](images/no.jpg) |
]

---
# Comparison between `Thread` and `Process`

.table[
|           |  Thread   | Process .subitem[(fork)] | Process .subitem[(spawn)] |
|---------------|:------------------:|:------------------:|:------------------:|
| Efficient multicore run         | ![](images/no.jpg) | ![](images/ok.jpg) | ![](images/ok.jpg) |
| No communication overhead | ![](images/ok.jpg) | ![](images/no.jpg) | ![](images/no.jpg) |
| POSIX safe    | ![](images/ok.jpg) | ![](images/no.jpg) | ![](images/ok.jpg) |
| No spawning overhead | ![](images/ok.jpg) | ![](images/ok.jpg) | <img src="images/no_loky.png" alt="" style="width: 4em;"> |
]

.centered[.normal[
</br>
$\Rightarrow$ Hide the spawning overhead by reusing the pool of processes.
]]

---
class: middle, center

# Reusing a `ProcessPoolExecutor`.

---
# Reusing a `ProcessPoolExecutor`.

</br>
.normal2[

To Avoid the spawning overhead, reuse a previously started `ProcessPoolExecutor`.

The spawning overhead is only paid once.

Easy using a global pool of process.
__Main issue:__ is that robust?
]

---
# Managing the state of the executor

.normal[
Example deadlock
```python
>>> from concurrent.futures import ProcessPoolExecutor
>>> with ProcessPoolExecutor(max_workers=4) as e:
*...     e.submit(lambda: 1).result()
...
Traceback (most recent call last):
  File "/usr/lib/python3.6/multiprocessing/queues.py", line 241, in _feed
    obj = _ForkingPickler.dumps(obj)
  File "/usr/lib/python3.6/multiprocessing/reduction.py", line 51, in dumps
    cls(buf, protocol).dump(obj)
_pickle.PicklingError: Can't pickle <function <lambda> at 0x7fcff0184d08>:
attribute lookup <lambda> on __main__ failed

```

It can be tricky to know which `submit` call crashed the `Executor`.
]

---
# Managing the state of the executor

.normal[
Example deadlock
```python
>>> from concurrent.futures import ProcessPoolExecutor
>>> with ProcessPoolExecutor(max_workers=4) as e:
*...     e.submit(lambda: 1)
...
Traceback (most recent call last):
  File "/usr/lib/python3.6/multiprocessing/queues.py", line 241, in _feed
    obj = _ForkingPickler.dumps(obj)
  File "/usr/lib/python3.6/multiprocessing/reduction.py", line 51, in dumps
    cls(buf, protocol).dump(obj)
_pickle.PicklingError: Can't pickle <function <lambda> at 0x7f5c787bd488>:
attribute lookup <lambda> on __main__ failed

```

Even worse, shutdown itself is deadlocked.

]

---
exclude: true
# Managing the state of the executor

.normal[
Example deadlock n2
```python
>>> from concurrent.futures import ProcessPoolExecutor
>>> def error():
...     raise RuntimeError()
...
>>> class CrashAtUnpickle(object):
...     """Bad object that triggers a segfault at unpickling time."""
...     def __reduce__(self):
...         return error, ()
...
>>> def return_instance(cls):
...     return cls()
...
>>> with ProcessPoolExecutor(max_workers=4) as e:
...     e.submit(return_instance, CrashAtUnpickle).result()
...
Exception in thread Thread-132:
Traceback (most recent call last):
    ....
    raise RuntimeError()
RuntimeError

^C
```
]

---
class: middle, center

# Reusable pool of workers: `loky`.

---
# `loky`: a robust pool of workers

.normal[
```python
>>> from loky import ProcessPoolExecutor
>>> class CrashAtPickle(object):
...     """Bad object that triggers a segfault at unpickling time."""
...     def __reduce__(self):
...         raise RuntimeError()
...
>>> with ProcessPoolExecutor(max_workers=4) as e:
...     e.submit(CrashAtPickle()).result()
...
Traceback (most recent call last):
...
RuntimeError
Traceback (most recent call last):
...
BrokenExecutor: The QueueFeederThread was terminated abruptly while feeding a
new job. This can be due to a job pickling error.
>>>
```

- Return and raise a user friendly exception.
- Fix some other deadlocks.

]

---
# A reusable `ProcessPoolExecutor`

.left-column[
```python
*>>> from loky import get_reusable_executor
*>>> excutor = get_reusable_executor(max_workers=4)
*>>> print(excutor.executor_id)
*0

>>> excutor.submit(id, 42).result()
139655595838272

>>> excutor = get_reusable_executor(max_workers=4)
>>> print(excutor.executor_id)
0

>>> excutor.submit(CrashAtUnpickle()).result()
Traceback (most recent call last):
...
BrokenExecutorError
>>> excutor = get_reusable_executor(max_workers=4)
>>> print(excutor.executor_id)
1
>>> excutor.submit(id, 42).result()
139655595838272

```
]

Create a `ProcessPoolExecutor` using the factory function `get_reusable_executor`.

---
count: false
# A reusable `ProcessPoolExecutor`

.left-column[
```python
>>> from loky import get_reusable_executor
>>> excutor = get_reusable_executor(max_workers=4)
>>> print(excutor.executor_id)
0

*>>> excutor.submit(id, 42).result()
*139655595838272

>>> excutor = get_reusable_executor(max_workers=4)
>>> print(excutor.executor_id)
0

```
]
.right-column[
Create a `ProcessPoolExecutor` using the factory function `get_reusable_executor`.

The executor can be used exactly as `ProcessPoolExecutor`.
]

---
count: false
# A reusable `ProcessPoolExecutor`

.left-column[
```python
>>> from loky import get_reusable_executor
>>> excutor = get_reusable_executor(max_workers=4)
>>> print(excutor.executor_id)
0

>>> excutor.submit(id, 42).result()
139655595838272

*>>> excutor = get_reusable_executor(max_workers=4)
*>>> print(excutor.executor_id)
*0

```
]
.right-column[
Create a `ProcessPoolExecutor` using the factory function `get_reusable_executor`.

The executor can be used exactly as `ProcessPoolExecutor`.

When the factory is called elsewhere, reuse the same executor if it is working.
]

---
count: false
# A reusable `ProcessPoolExecutor`

.left-column[
```python
>>> from loky import get_reusable_executor
>>> excutor = get_reusable_executor(max_workers=4)
>>> print(excutor.executor_id)
0

>>> excutor.submit(id, 42).result()
139655595838272

>>> excutor = get_reusable_executor(max_workers=4)
>>> print(excutor.executor_id)
0

>>> excutor.submit(CrashAtUnpickle()).result()
Traceback (most recent call last):
...
*BrokenExecutorError
*>>> excutor = get_reusable_executor(max_workers=4)
*>>> print(excutor.executor_id)
*1
>>> excutor.submit(id, 42).result()
139655595838272

```
]
.right-column[
Create a `ProcessPoolExecutor` using the factory function `get_reusable_executor`.

The executor can be used exactly as `ProcessPoolExecutor`.

When the factory is called elsewhere, reuse the same executor if it is working.

When the executor is broken, automatically re-spawn a new one.
]

---

# Conclusion

---
# Conclusion

- `Thread` can be efficient to run multicore programs if your code releases the **GIL**.

- Else, you should use `Process` with `spawn` and try to reuse the pool of process as much as possible.

- `loky` can help you do that ;).

- Improves the management of a pool of workers in projects such as `joblib`.

]

---

# Thanks for your attention!

.normal[
</br>
<div style="text-align:left">
Slides available at [tommoral.github.io/pyparis17/](https://tommoral.github.io/pyparis17/)
</br></br>
More on the GIL by Dave Beazley : [dabeaz.com/python/GIL.pdf](http://dabeaz.com/python/GIL.pdf)</br></br>
![:scale 1em](images/github.png) Loky project : [github.com/tommoral/loky](https://github.com/tommoral/loky)</br></br>
![:scale 1em](images/twitter.png) @[tomamoral](https://twitter.com/tomamoral) </br>
</div>
]
.filler[]
